The simple underground solution

Underground gearmotor for small swing gates, up to 1.8 m in length.

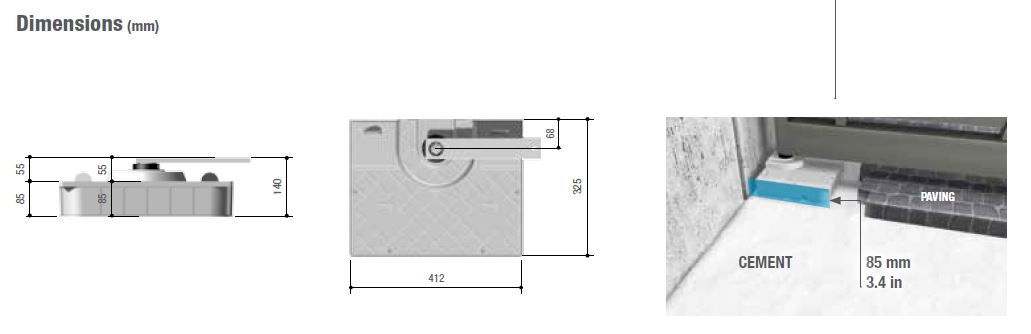

No need for expensive preparation works because it only needs 85 mm of foundation; Fro-J is the ideal motor for intensive use in residential settings.

Built-in release system with customised key

Convenient, safe, sealed, protected by the special hatch with gaskets; easily accessible from both inside and outside the gate.

Benefits

For installers: EN Tested technology for easy system certification in accordance with European standards.For users: the 24 V electronics automatically detects any power failure and activates emergency operation by using backup batteries (optional).

Total control

  • indicator LEDs built into the control board for easy diagnosis of system functions
  • end run control via encoder for easy management of movement and slowdown stages
  • simplified installation using a single cable with three wires for managing the power supply and the slowdowns

FROG J_DIMENSIONFROG J _ SPEC
